HP330HB/HT电脑裁板锯
HP330HB/HT电脑裁板锯

HP330HB/HT电脑裁板锯

分类:(重型后上料)
高精度、
高效率、
超稳定、大规模批量开料
  • 产品详情
  • 参数视频

HP330HB:双推箱,上料、推料同步进行HP330HE:双推手,可同时锯切不同尺寸板材

HP330HB: Double pusher bearn, feeding and pushing are camied out at the same timeHP330HT: Double pusher, can cut different sizes of panels at the same time

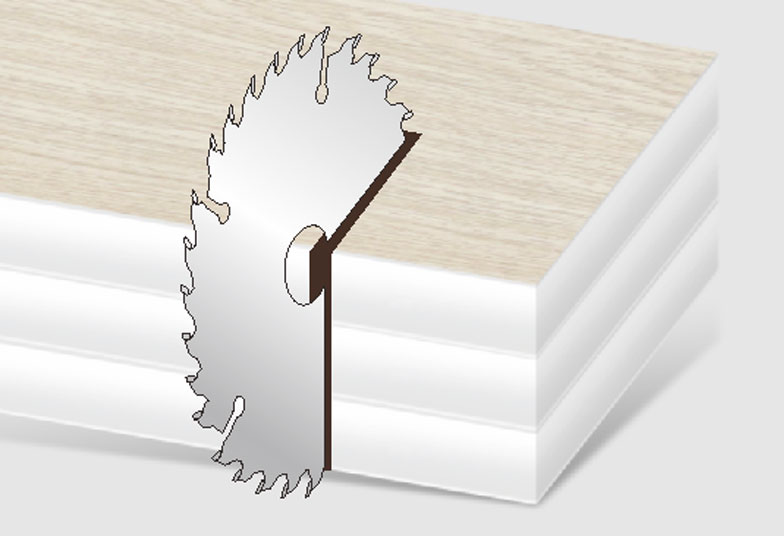

超重型后上料电子锯最大锯切厚度可达120mm独立四立柱同步重型升降台气动快速装拆主锯片装置

锯片根据锯切厚度智能控制升降高度压梁根据锯切厚度智能控制升降高度锯车伺服电机驱动

主锯电机加大至22KW

Super heavy duty rear loading oomputer panel sawMaxirmum cutting thickness up to 12omm

lndependent four columns synchronous heay duty fitting table Pneumatic main saw blade changing system

The saw blade's height lifts intelligently according to the panels thicknessThe beam's height lifts intelligently according to the panels thicknessServo motor drives the saw carriage

Main saw motor's power is increased to 22kw


现场操作视频

Operating video


扫码观看


产品参数

设备型号HP330HTHP330HB

上料方式

Feeding method

双推手后上料

Rear feeding with double pushers

双推手后上料

Rear feeding with double pushers

锯切长度

Max.cutting length

3180mm3180mm

锯切宽度

Max.cutting width

3300mm3300mm

锯片最大高度

Max.height of blade

100mm智能升降

100mm intelligent lifting

100(120)mm智能升降

100(120)mm intelligent lifting

主锯片

Main saw blade

400×4.4/3.2×75×72Tx15/105可选450×4.4/3.2x75XT2T×15/105

400×4.4/3.2×75×72Tx15/105可选450×4.4/3.2x75XT2T×15/105

槽锯片

Scoring saw blade

160×5.3/3.2×45×24T160×5.3/3.2×45×24T

锯座前进速度

Forward speed of saw carriage

5-100m/min5-100m/min
锯座回程速度

Backward speed of saw carriage

0-100m/min0-100m/min

机械手前进速度

Forward speed of mechanical grippers

0-100m/min0-100m/min

机械手回程速度

Backward speed of mechanical grippers

0-100m/min0-100m/min

侧压装置

Side pressure device

气动双侧压轮

Pneumatic double side pressure wheels

气动双侧压轮

Pneumatic double side pressure wheels

主锯轴马达功率

Motor power of main saw shaft

22KW22KW

槽锯轴马达功率

Motor power of scoring saw shaft

2.2KW
2.2KW

锯车伺服电机

Saw carriage servo motor

1.8KW
1.8KW

送料轴电机

Feeding shaft motor

1.8KW
1.8KW

侧送料轴电机

Sid feedingshaft motor

1.3KW

机械手数量

Mechanical gripper's quantity

11PCS
10PCS

气浮台高压风机

High pressure blower of airfloating table

2.2KW
2.2KW

后上料平台尺寸

Rear feeding table's dimension

3800x2200x600mm3800x2200x600mm

包装尺寸

Packing size

5400x1420x2200mm

5900x920x1000mm

3800x2000x1000mm

5400x1420x2200mm

5900x920x1000mm

4100x920x1000mm

3800x2000x1000mm

机械占地面积

Floor area

8100x5400x2200mm
8100x5400x2220mm

Weight

Weight

10700kg
11000kg

最小板材尺寸

Minimum cutting size

30x30mm50x30mm

总功率

Total power

40.5KW
41KW

注:本司对产品规格及设计细节不断改良更新,上述功能与参数可能有优化改进,请与授权销售单位确认。

The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
